I recently decided to try to build a small CNC router. There is a lot of information online for this, but I settled on the Mantis 9. It is a desktop (footprint is 10"x10") unit; the largest workpiece it can handle is about 4"x6". It was easy to build and the cost was around $100. This machine is controlled by an Arduino microprocessor, and connects to a computer's USB port. Good information can be found at these sites and elsewhere:

http://makeyourbot.wikidot.com/mantis9-1

https://thebuildroom.wordpress.com/tag/mantis-cnc/

http://www.artengine.ca/modlab/index.php/Mantis_CNC_Build_2011

https://www.youtube.com/watch?v=5siv7DM08bw&feature=youtu.be

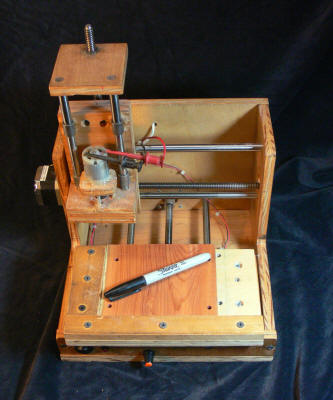

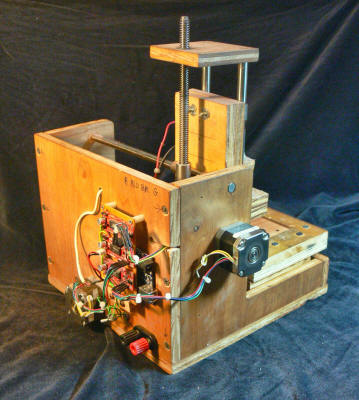

Here is a picture of my CNC-

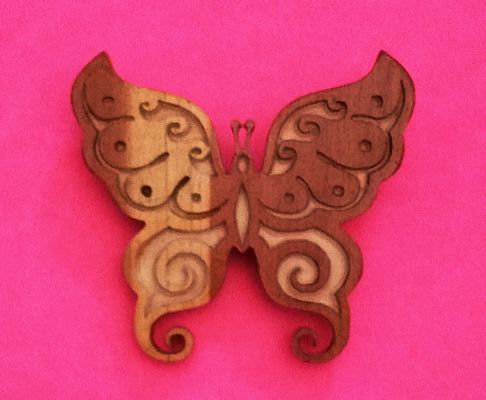

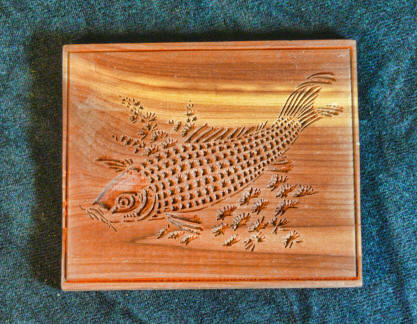

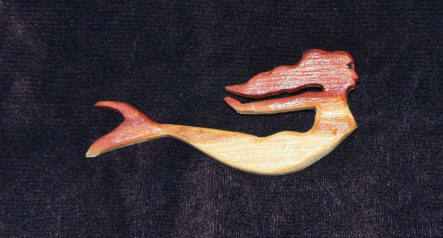

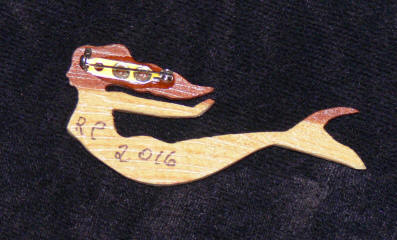

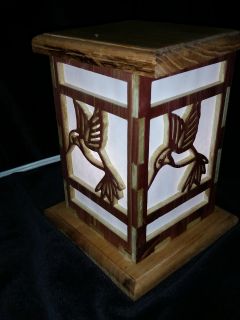

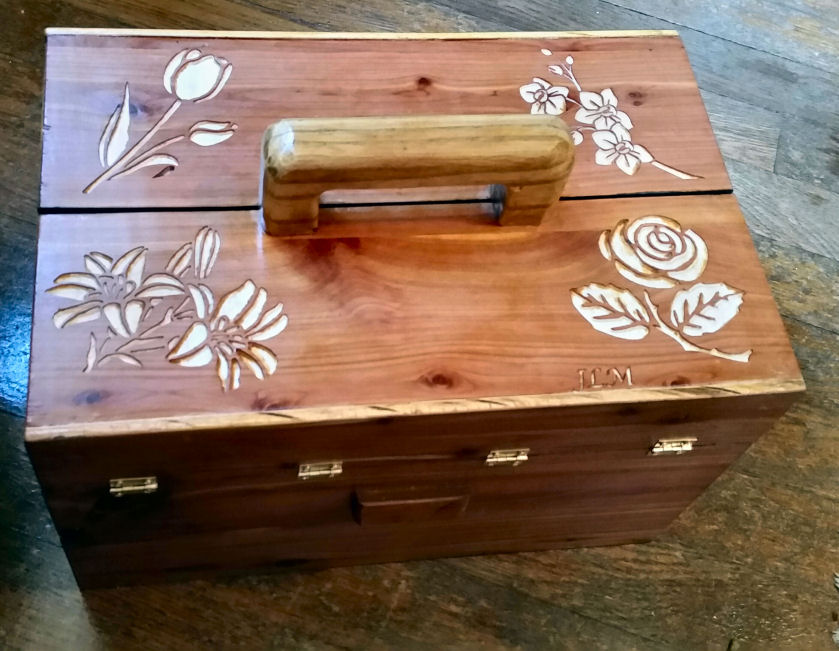

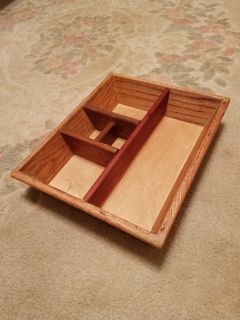

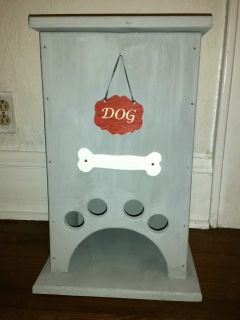

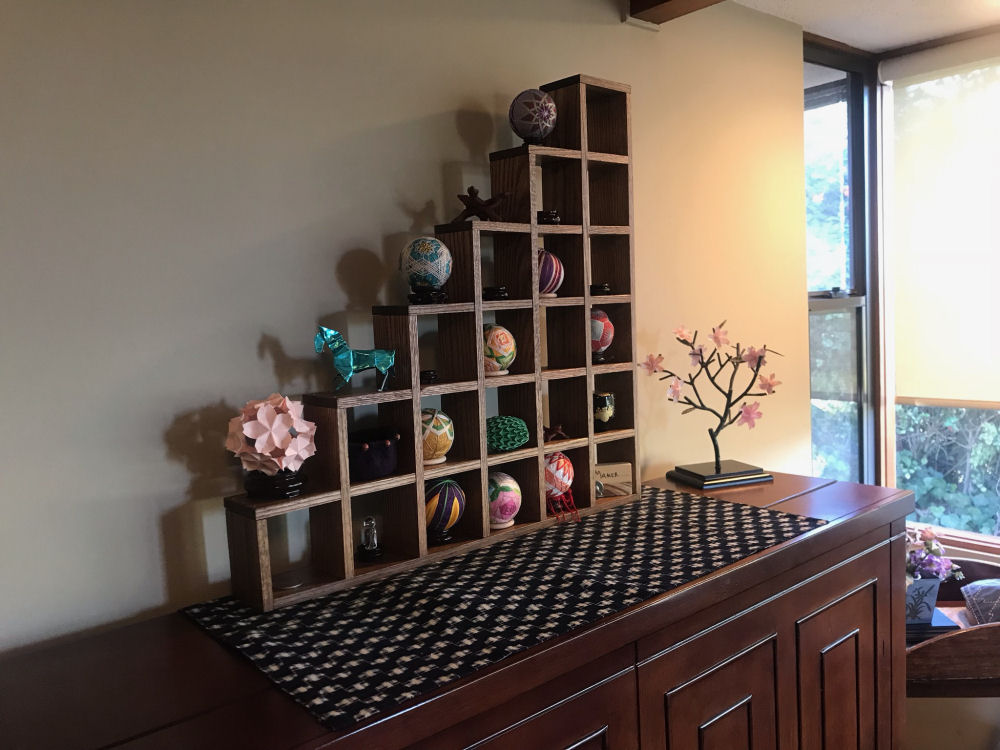

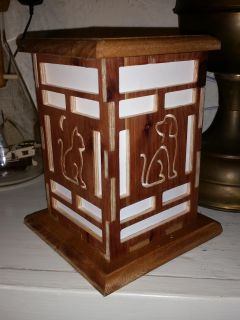

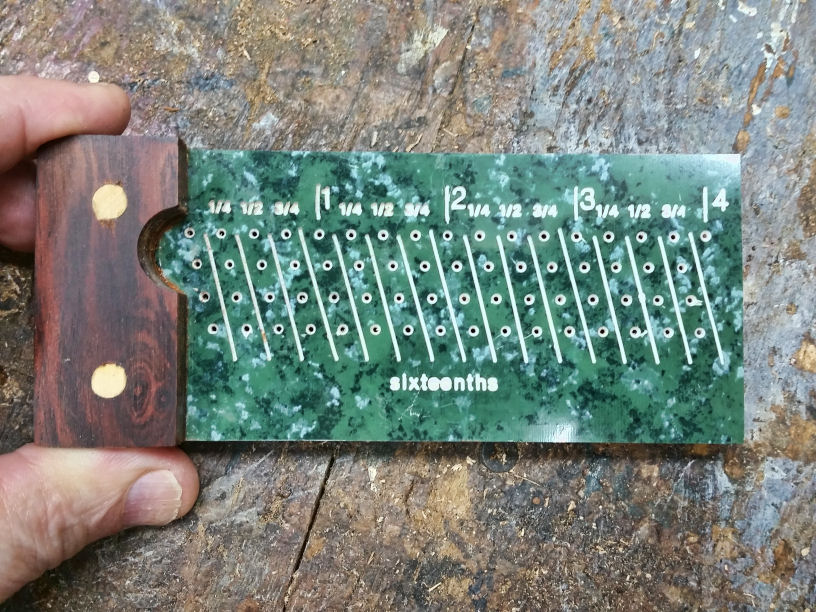

                  and here are some of the things I've been making with it--

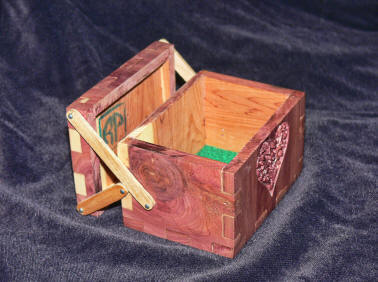

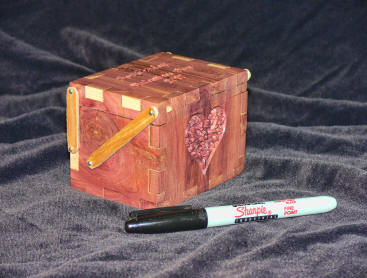

    Note the 4-bar linkage used as a hinge.

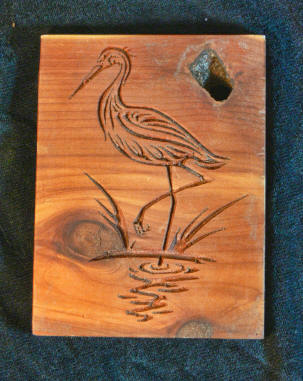

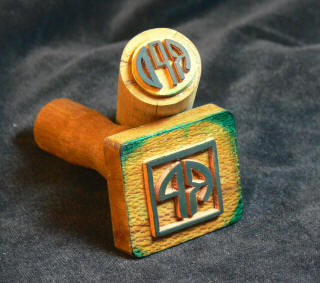

Stamps-

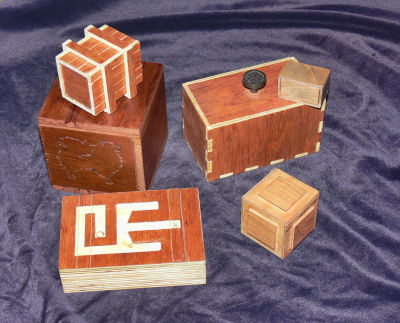

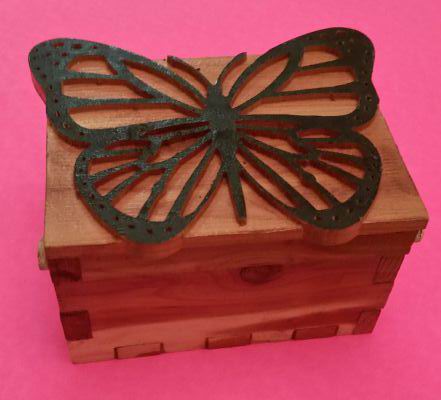

Puzzle Boxes-

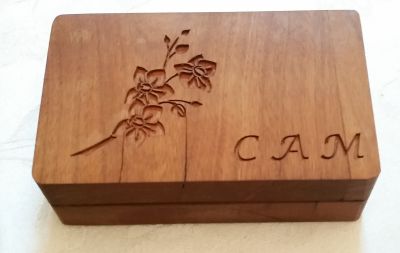

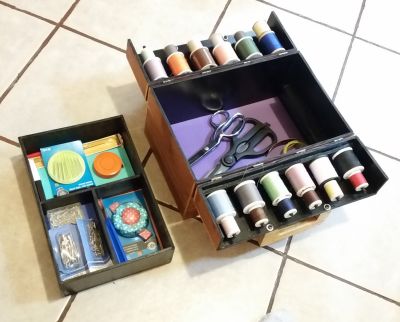

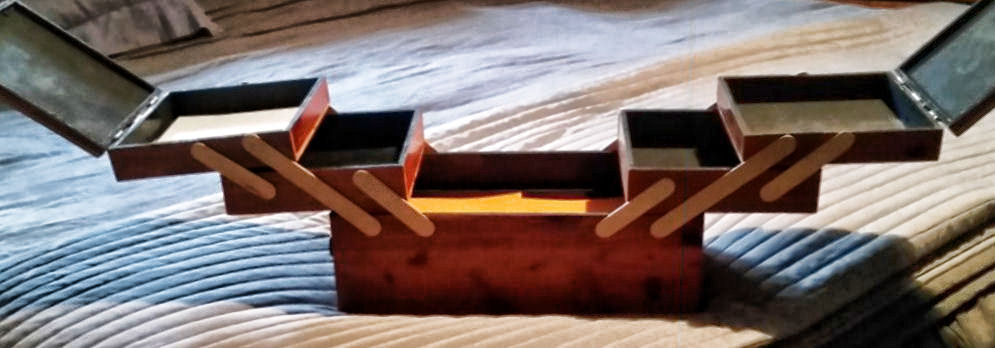

Sewing Boxes-

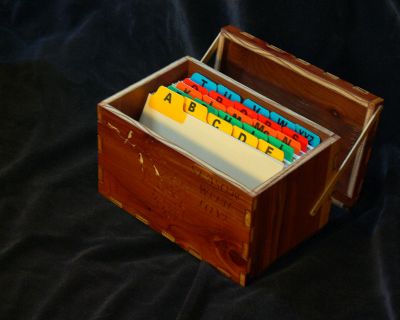

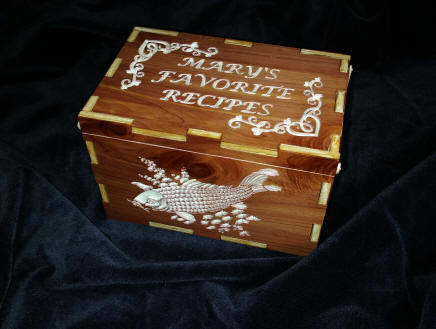

Recipe Boxes-

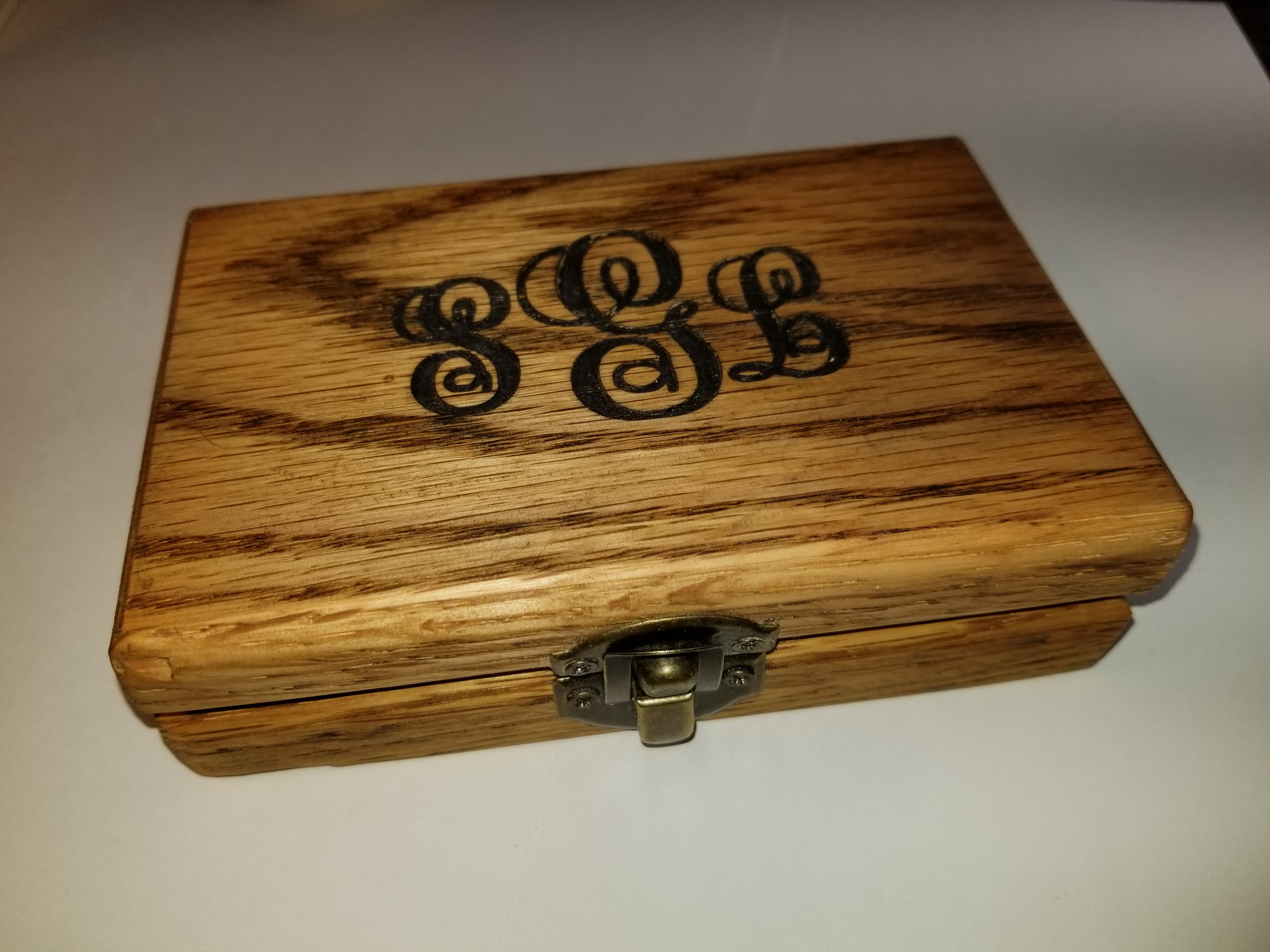

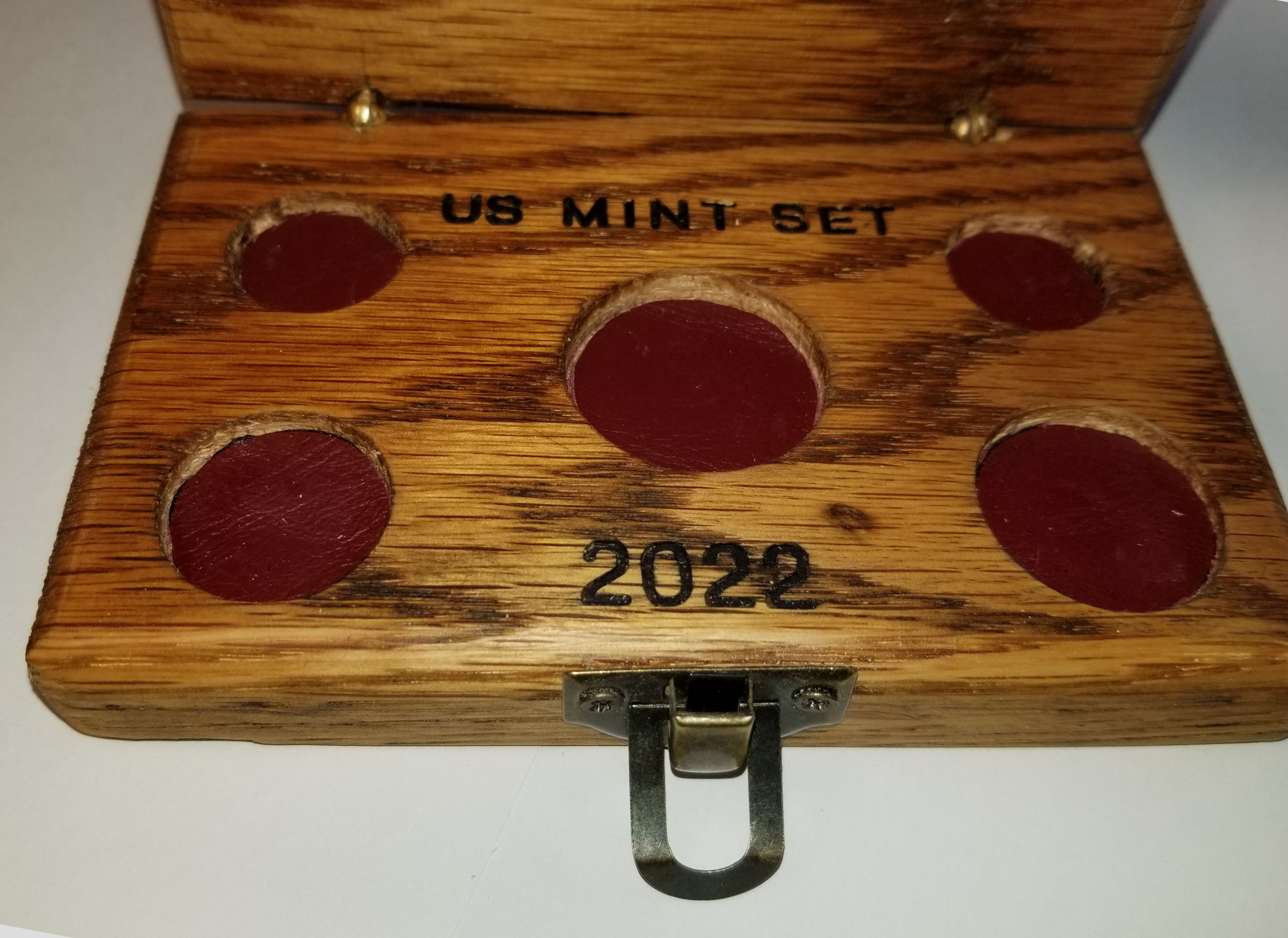

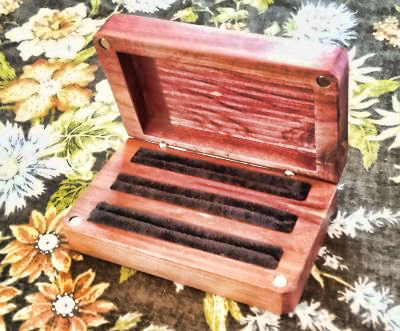

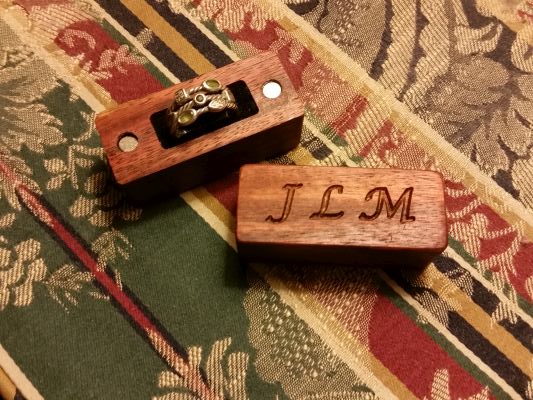

Ring Boxes-

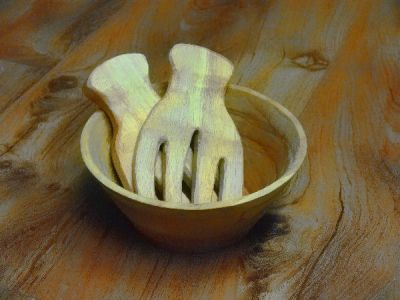

Bowls-

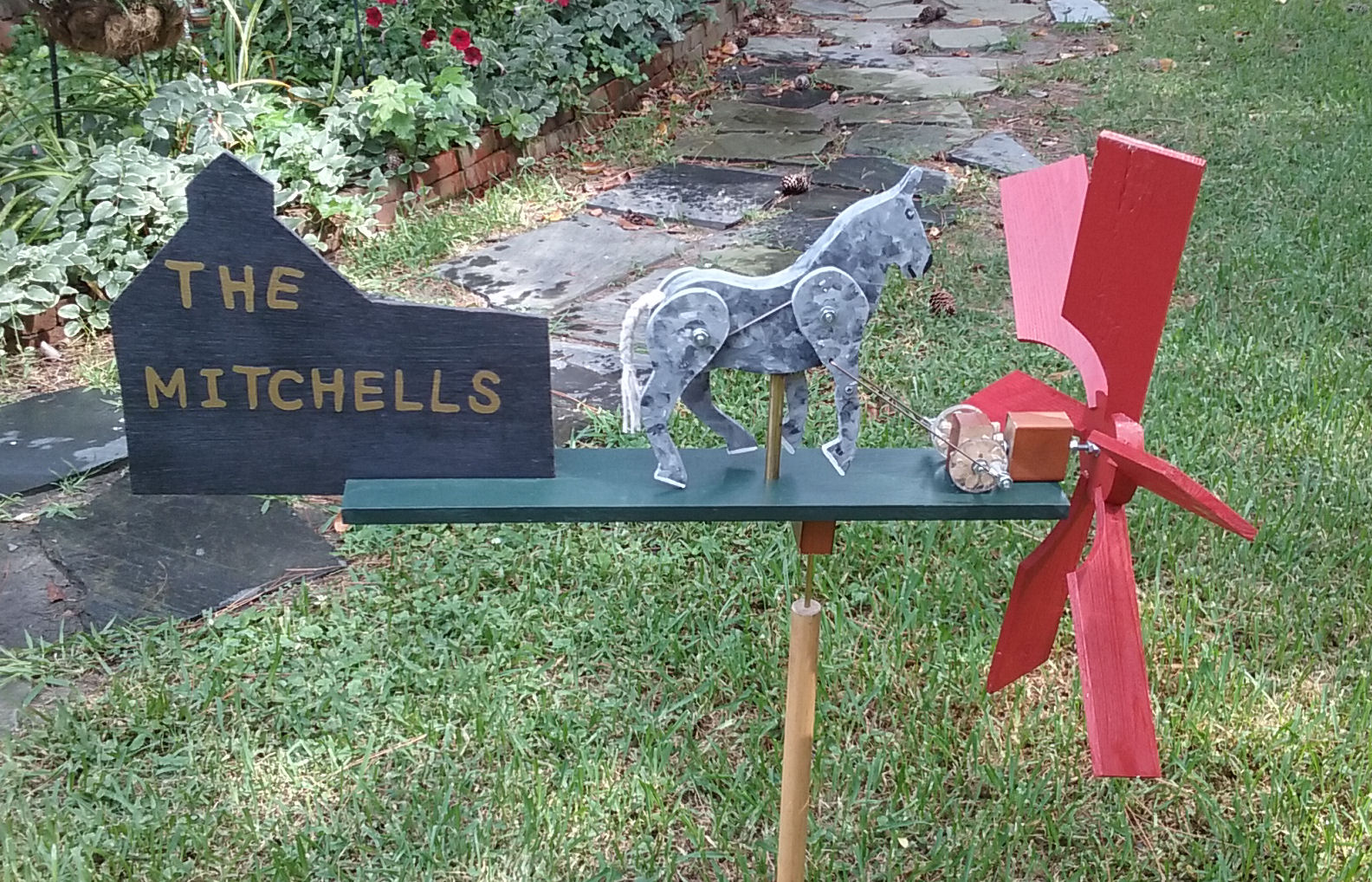

A whirligig- Click on the image to watch it in action.
